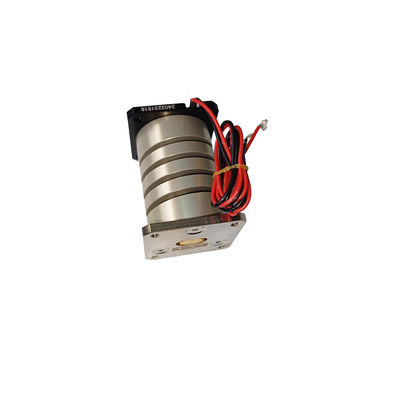

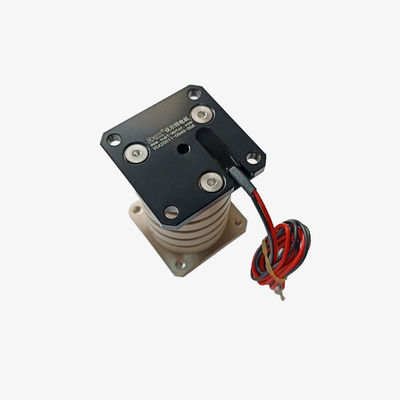

High Speed High Frequency Vibration Motors For 3C Electronics Automation
제품 상세 정보
| 모터 유형 | 진동 모터 | 피크 힘 | 4.2N |
|---|---|---|---|
| 모델사양 | VCZA0010-0020-00A | 인증 | ISO9001 |
| 현재 시작 | 1.6A | 정격전압 | 14.8V |
| 포지셔닝 정확도 | ± 1μm | 최대 속도 | 2m/s |
| 허용되는 최대 COI 온도 | 150C | 뇌졸중 | 1.5mm |
제품 설명
Product Description:
SUPTMOTION VCAZ Series Vibration Voice Coil Motors are specifically designed for high-speed automation systems in the 3C electronics industry. As manufacturing processes for smartphones, wearable devices, and consumer electronics continue to advance, production equipment must achieve faster speeds, higher precision, and more reliable motion performance.
The core advantage of the VCAZ series in 3C automation applications lies in its exceptionally fast dynamic response capability. On automated assembly lines processing thousands of components per hour, the motion system must achieve near-zero-delay start-up, stop, and positioning. The vibrating voice coil motor design enables the VCAZ series to achieve rapid acceleration and deceleration, ensuring efficient production cycles.
The compact structure of vibration motors makes them ideal for integration into automated equipment such as pick-and-place machines, micro-assembly workstations, and camera module alignment systems.
Vibration Voice Coil Motors are specifically optimized for 3C electronics automation equipment, delivering high-speed linear motion with exceptional precision. Their direct-drive structure ensures smooth motion and rapid acceleration, making them an ideal choice for automated assembly and testing production lines.
Features:
High Precision Motion Control:
Direct-drive electromagnetic design eliminates mechanical transmission errors, providing micron-level positioning accuracy.
High Frequency Response:
Capable of rapid acceleration and deceleration, making it ideal for high-speed dynamic positioning systems.
High Speed Performance:
Fast response time enables quick start-stop movement and high-speed linear actuation.
Compact and Lightweight Design:
Small footprint allows seamless integration into compact equipment and precision instruments.
Product Parameters:
| Model Number | VCAZ0010-0020-00A | |||
| Coil parameters | Tolerance | Symbol | Value | Unit |
| DCR | ±10% | R | 9.5 | Ω |
| Peak Voltage | standard value | Vp | 14.8 | V |
| Maximum current | standard value | Ip | 1.6 | A |
| Force constant | ±7.5% | KF | 2.7 | N/A |
| Back EMF constant | standard value | KD | 2.7 | V/M/Sec |
| Inductance | ±30% | L | 0.37 | mH |
| Actuator paramters | Symbol | Value | Unit | |
| Peak force | Fp | 4.2 | N | |
| Continuous stall force | Fc | 2.2 | N | |
| Actuator coonstant | Ka | 0.87 | N//W | |
| Electrical time constant | Te | 0.04 | milli-sec | |
| Pmax | Pp | 24 | W | |
| Stroke | S | 1.5 | mm | |
| Clearance of each side of coil | CL | 0.8 | mm | |
| Thermal resistance | Oth | 20 | ℃/W | |
| Maximum coi temp allowed | Tmax | 150 | ℃ | |
| Weight of coil | WTc | 13 | g | |
| Weight of magnet steel | WTE | 56 | g | |
| Weight of Actuator | WTa | 69 | g | |
Applications:
Optical and Photonics Systems:Optical lens focusing,Beam steering and stabilization,Optical alignment platforms.
Precision Automation:High-speed pick-and-place machines,Micro-positioning stages,Precision assembly equipment
Testing and Inspection Equipment:Vision inspection systems,High-speed scanning platforms,Precision measurement instruments
