Low Noise High Stability Linear Voice Coil Motor For Medical Scanners
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 보증 | 3개월~1년 | 제품 모델 | VCAB0087-0563-00A |
|---|---|---|---|
| 중량(g) | 177 | 피크 포스(N) | 87 |
| 전체 스트로크(mm) | 56.3 | 최대 전압(V) | 63.4 |
| 애플리케이션 | 자동 탄 화물 | 속도 | 높은 |
| 제품 유형 | 선형 음성 코일 모터 | 정류 | 브러시 |
| 연속적인 힘(N) | 17.5N | 응용 분야 | 3C 전자, 반도체, 자동화, 광학, 검사장비 |
| 소음 | 저음 |
제품 설명
Product Description:

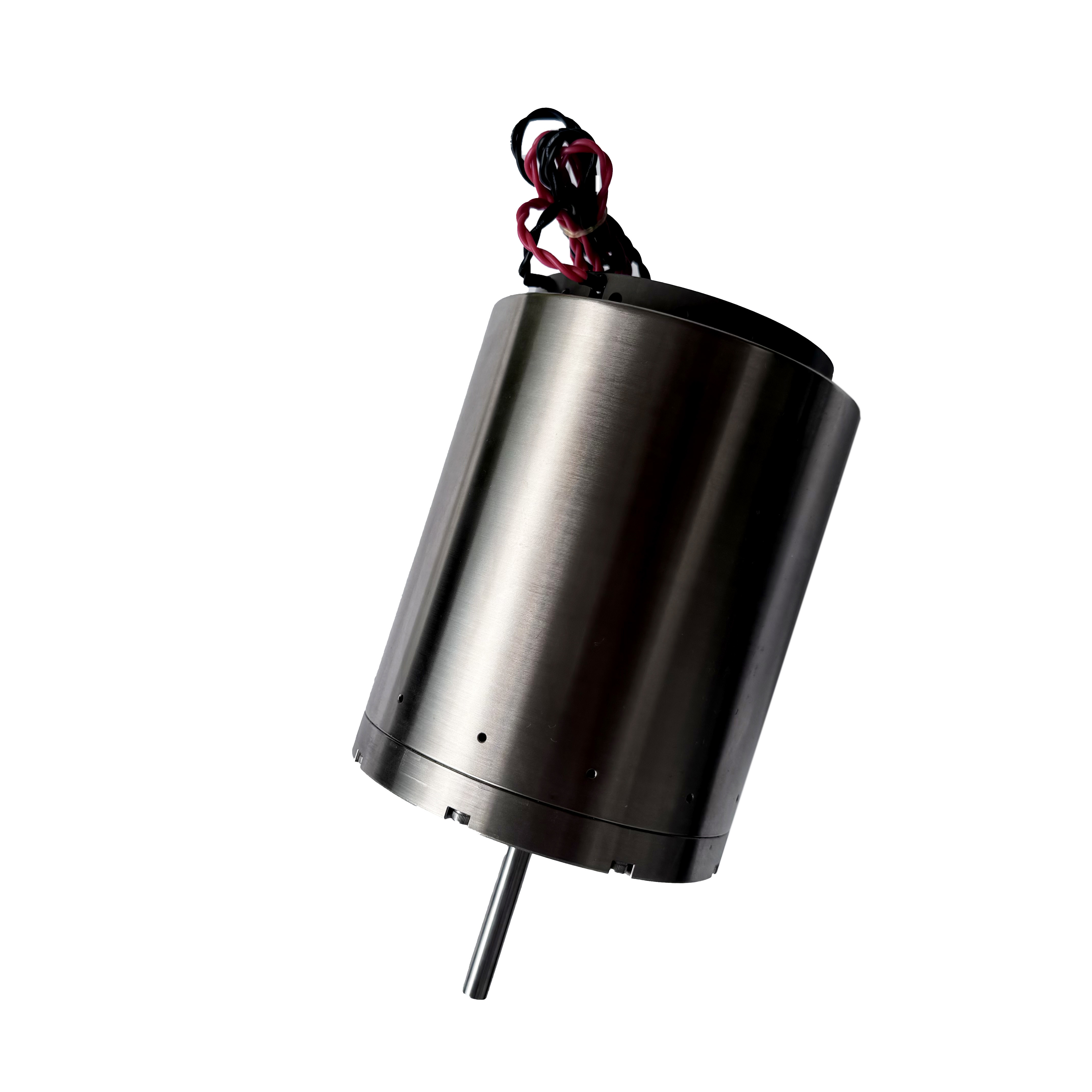

The VCAB0087-0563-00A shaft-type linear voice coil motor from SUPT adopts a moving-coilactuation mechanism combined with a precision-guided shaft and linear bearings, offering excellentstability within a compact structure. lts high-flux permanent magnet assembly creates a strongmagnetic field, enabling the lightweight moving coil to produce highly responsive and linear forceoutput with minimal inertia. This design allows the actuator to maintain outstanding dynamicbehavior during rapid acceleration, deceleration, and frequent reciprocating motion.
The Linear Voice Coil Motor, with its frictionless drive, high-frequency response, nanometer-level displacement resolution, and highly linear motion output, has become an essential actuator in modern medical scanning equipment. It is widely used in blood analyzers, CT auxiliary positioning units, confocal scanners, endoscope autofocus modules, and ultrasound probe scanning mechanisms, enabling fast, silent, contact-free, and highly repeatable micro-positioning performance.
Features:
- Frictionless Direct-Drive Architecture
- Ultra-Precise Micro-Positioning (Nanometer Resolution)
- Ultra-Low Noise Motion
- Millisecond-Level Fast Response
- Supports Closed-Loop Position / Force Control
Technical Specifications :
Stroke:56.3mm
Continuous Force:147.6N
Peak Force:87N
Force Constant:8N/A
Resistance:35.2Ω
Mass:good
Dimensions:200*400*400cm
Working Current:1.8A
Product Parameters:
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil (g) |
Stator Diameter | Shaft end thread (mm) |
| VCAB0005-0039-00A | 5 | 1.5 | 3 | 5.4 | 0.9 | 23 | 29.5 | M2(Outer) |
| VCAB0005-0050-00A | 5 | 2.2 | 3.9 | 14.5 | 3.1 | 27 | 31.5 | M2.5(Outer) |
| VCAB0013-0072-00A | 13 | 4.2 | 7.2 | 26.6 | 5.72 | 16.2 | 26.2 | M3(Outer) |
| VCAB0015-0062-00A | 15 | 6.5 | 6.2 | 26.2 | 9.75 | 14.8 | 33 | M3(Outer) |
| VCAB0015-0127-00A | 15 | 4.9 | 12.7 | 21.5 | 4.1 | 12.5 | 30.5 | Shaft ∮4.8 |
| VCAB0022-0098-00A | 22 | 6.6 | 9.8 | 24.7 | 5.8 | 20 | 34.1 | M3(Outer) |
| VCAB0022-0448-00A | 22 | 11.4 | 44.8 | 14.3 | 4 | 52 | 48 | M3(Inner) |
| VCAB0032-0050-00A | 32 | 8.9 | 5 | 29.3 | 7.1 | 48 | 40 | M3(Inner) |
| VCAB0033-0099-00A | 33 | 8 | 9.9 | 24.3 | 5.87 | 23.5 | 36 | M3(Outer) |
| VCAB0033-0224-00A | 33 | 13.5 | 22.4 | 26.7 | 6.8 | 69 | 58 | M3(Inner) |
| VCAB0035-0105-00A | 35 | 15.6 | 10.5 | 11.9 | 5 | 91 | 50 | M3(Inner) |
| VCAB0044-0040-00A | 44 | 16.3 | 4 | 18.3 | 8.9 | 46.5 | 53 | M3(Inner) |
| VCAB0044-0059-00A | 44.1 | 17.7 | 5.9 | 14.3 | 8 | 43 | 46 | M3(Inner) |
| VCAB0044-0075-00A | 44 | 13.7 | 7.5 | 16.8 | 7.6 | 38.6 | 31.1 | M3(Outer) |
| VCAB0044-0249-00A | 44 | 11.7 | 24.9 | 44.9 | 8.88 | 65.9 | 38.1 | M3(Inner) |
| VCAB0070-0149-00A | 70 | 27.3 | 14.9 | 26.9 | 17.7 | 79 | 43 | M3(Inner) |
| VCAB0087-0062-00A | 87 | 21.67 | 6.2 | 34.5 | 12.7 | 45.2 | 43.1 | M3(Inner) |
| VCAB0087-0563-00A | 87 | 17.5 | 56.3 | 63.4 | 8.1 | 177 | 72 | shaft ∮10 |
| VCAB0088-0191-00A | 88.5 | 23.2 | 19.1 | 29.9 | 8 | 162 | 50.8 | M3(Inner) |
| VCAB0105-0164-00A | 105 | 35.4 | 16.1 | 20.1 | 11.5 | 150 | 60.4 | M3(Inner) |
| VCAB0113-0089-00A | 113 | 35 | 8.9 | 31 | 17.5 | 125 | 73 | shaft ∮8 |
| VCAB0262-0112-00A | 262 | 111 | 11.2 | 35.1 | 41 | 285 | 71 | shaft ∮10 |
| VCAB0262-0249-00A | 262 | 112 | 24.9 | 28.2 | 26 | 785 | 66 | shaft ∮8 |
| VCAB0294-0498-00A | 294 | 56.8 | 49.8 | 114 | 24.5 | 685 | 93 | shaft ∮10 |
| VCAB0436-0187-00A | 436 | 147.6 | 18.7 | 40.7 | 40.7 | 648 | 80.4 | shaft ∮10 |
| VCAB0436-0250-00A | 436 | 167 | 25 | 31.6 | 37.2 | 775 | 78.4 | shaft ∮10 |
| VCAB0445-0300-00A | 445 | 185 | 30 | 33 | 35 | 920 | 76.2 | shaft ∮10 |
Applications:
- Confocal Optical / Laser Scanners
- Endoscope Autofocus Units
- Hematology Cell Scanners
- Ultrasound Probe Scanning Mechanisms
- Medical Lab Micro-Positioning Stages
- CT / X-Ray Positioning Units
